Questionnaire

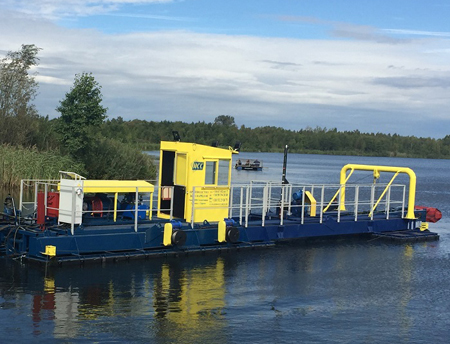

Dredger HCC 300/40

Земснаряд НСС, производство ВВВ-Спецтехника, Херсон, Украина Productivity by pulp: from 250 to 320 m/cubic meter per hour

Productivity by soil: from 25 to 40 m cubic meters per hour

Category of developed soils: 1-4

Dredger ripper type: Cutterr ripper / Hydraulic washing-out (jet)

Head of water column: 40-45 m
Development depth: 0.5 m to 17 m
Suction pipe length: 7 m to 20 m
Soil transportation range: up to 400 m
Discharge pipeline diameter: 140 mm

Dredger power supply: autonomous / onshore
Diesel/electric motor power: 125/55 kW
Generator power (for diesel dredger): 27 kW

Main pump: vortex type (manufactured by PE "VVV-SPETSTEKHNIKA"), material high-carbon steel M500
Pump capacity (fraction): from 35 mm to 55 mm

Dredger assembly weight: 8 tons
Overall dimensions in working position: length 7m - 16 m, width 3.4 - 4 m, height 3.5 m
Moving across the reservoir: winches 4 pcs
Winches power: 2.2 kW

Pump drive: hydraulic
Cutter drive: hydraulic
Cutter power: 9 kW
Hydraulic washing-out power: 7.5 kW

Production time: from 2.5 months

A MORE DETAILED DESCRIPTION OF TECHNICAL CHARACTERISTICS YOU WILL RECEIVE AFTER CONTACTING WITH THE COMPANY'S SPECIALISTS OR FILLING IN THE QUESTIONNAIRE.
