Questionnaire

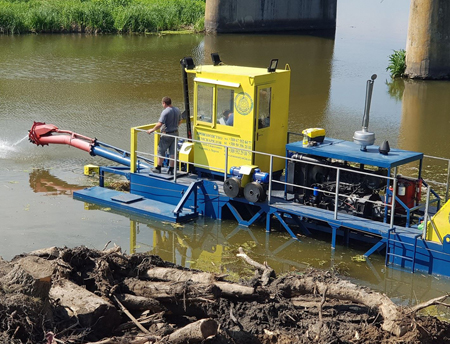

Dredger НСС 400/20

Земснаряд НСС, производство ВВВ-Спецтехника, Херсон, Украина Productivity by pulp: from 400 to 550 m/cubic meter per hour

Productivity by soil: from 50 to 85 m/cubic meters per hour

Category of developed soils: 1-4

Dredger ripper type: Cutterr ripper / Hydraulic washing-out (jet)

Head of water column: 20-45 m
Development depth: 0.5 m to 25 m
Suction pipe length: 7 m to 28 m
Soil transportation range: up to 500 m
Discharge pipeline diameter: 160 mm

Dredger power supply: autonomous /onshore
Diesel/electric motor power: 175/85 kW
Generator power (for diesel dredger): 30 kW

Main pump: vortex type (manufactured by PE "VVV-SPETSTEKHNIKA"), material high-carbon steel M500
Pump capacity (fraction): from 55 mm to 65 mm

Dredger assembly weight: 14 tons
Overall dimensions in working position: length 7m - 20m, width 4m, height 3.5m
Moving across the reservoir: winches 4 pcs
Winch power: 2.2 kW

Pump drive: hydraulic
Cutter drive: hydraulic
Cutter power: 12 kW
Hydraulic washing-out power: 11 kW

Production time: from 3.5 months

A MORE DETAILED DESCRIPTION OF TECHNICAL CHARACTERISTICS YOU WILL RECEIVE AFTER CONTACTING WITH THE COMPANY'S SPECIALISTS OR FILLING IN THE QUESTIONNAIRE.
